LED High Bay & Low Bay Lights

  3 Lumen Settings: 16,000LM(100W)/18,000LM(120W)/22,000LM(150W) 2 Kelvin Settings: 4000K/5000K L70 Life Hours: 146,000 Universal 120-277VAC  0-10VDC Dimming Drivers Plug-In Microwave & PIR Sensor Ready - Sold Seperately  Step-Down Transformer Available for 480V Applications Die cast aluminum housing and polycarbonate lenses are standard Black or White Finish Suspension from eyebolt (included) is standard Ceiling-mounted installation (using optional yoke mounting bracket, provides up to 180° of adjustability) Two ways to mount luminaire to electrical conduit: 1) Attach conduit (1/2” NPS) to optional yoke mounting bracket. 2) Optional pendant snap hook  cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F) DLC 5.1 Premium Listed Input transient surge protection = 6kV Complies with FCC Part 15, class A 5-Year Warranty Dimensions: 10.6"W x 5.5"H Spec Sheet

Read more less

  3 Lumen Settings: 24,000LM(150W)/30,000LM(200W)/35,000LM(240W) 2 Kelvin Settings: 4000K/5000K L70 Life Hours: 146,000 Universal 120-277VAC  0-10VDC Dimming Drivers Plug-In Microwave & PIR Sensor Ready - Sold Seperately  Step-Down Transformer Available for 480V Applications Die cast aluminum housing and polycarbonate lenses are standard Black or White Finish Suspension from eyebolt (included) is standard Ceiling-mounted installation (using optional yoke mounting bracket, provides up to 180° of adjustability) Two ways to mount luminaire to electrical conduit: 1) Attach conduit (1/2” NPS) to optional yoke mounting bracket. 2) Optional pendant snap hook  cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F) DLC 5.1 Premium Listed Input transient surge protection = 6kV Complies with FCC Part 15, class A 5-Year Warranty Dimensions: 13.0"W x 5.6"H

Read more less

3 Lumen Settings: 9,000LM(65W)/12,000LM(85W)/15,000LM(110W) 2 Kelvin Settings: 4000K/5000K Premium powder-coat, steel, white housing Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) Universal 120-277V AC voltage (50-60Hz) is standard Optics rotate up to 135° Plug-In Microwave & PIR Sensor Ready - Sold Sparately Remote control required to change factory sensor settings Emergency driver option available 347-480v achieved with step-down transformer 0-10VDC dimming drivers are standard Polycarbonate lens Long-life LEDs provide 148,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90) Chain-mount kit (includes v-hooks , 1-meter long chain) are standard cULus listed for damp locations DLC premium listed Complies with FCC part 15, class A Dimensions: 25.8"L x 12.1"W x 1.9"H Spec Sheet

Read more less

3 Lumen Settings: 15,000LM(95W)/18,000LM(115W)/24,000LM(160W) 2 Kelvin Settings: 4000K/5000K Premium powder-coat, steel, white housing Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) Universal 120-277V AC voltage (50-60Hz) is standard Optics rotate up to 135° Plug-In Microwave & PIR Sensor Ready - Sold Sparately Remote control required to change factory sensor settings Emergency driver option available 347-480v achieved with step-down transformer 0-10VDC dimming drivers are standard Polycarbonate lens Long-life LEDs provide 148,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90) Chain-mount kit (includes v-hooks , 1-meter long chain) are standard cULus listed for damp locations DLC premium listed Complies with FCC part 15, class A Dimensions: 25.8"L x 12.1"W x 1.9"H Spec Sheet

Read more less

3 Lumen Settings: 18,000LM(120W)/24,000LM(165W)/30,000LM(210W) 2 Kelvin Settings: 4000K/5000K Premium powder-coat, steel, white housing Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) Universal 120-277V AC voltage (50-60Hz) is standard Optics rotate up to 135° Plug-In Microwave & PIR Sensor Ready - Sold Sparately Remote control required to change factory sensor settings Emergency driver option available 347-480v achieved with step-down transformer 0-10VDC dimming drivers are standard Polycarbonate lens Long-life LEDs provide 148,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90) Chain-mount kit (includes v-hooks , 1-meter long chain) are standard cULus listed for damp locations DLC premium listed Complies with FCC part 15, class A Dimensions: 25.8"L x 12.1"W x 1.9"H Spec Sheet

Read more less

3 Lumen Settings: 12,000LM(80W)/15,000LM(100W)/18,000LM(130W) 2 Kelvin Settings: 4000K/5000K Operating temperature (ambient): -40°C to 55°C (-40°F to 131°F) Universal 120-277V AC voltage (50-60Hz) is standard 347-480V achieved with step-down transformer 0-10VDC dimming drivers are standard Emergency driver option availableInput transient surge protection = 6kV Polycarbonate prismatic lens Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures Plug-In Microwave & PIR Sensor Ready - Sold Sparately Remote control required to change factory sensor settings  Long-life LEDs provide 135,000 hours of operation with at least 70% of initial lumen output (L70), and 41,000 hours with at least 90% of initial lumen output (L90) Chain-mount kits (includes v-hooks , 1-meter long chain) are standard Optional surface mounting kit provides attachment to solid surfaces Optional pendant mounting kit provides pendant attachment to 1/2” rigid conduit Optional cable mount kit provides luminaire suspension cULus listed for damp locations DLC premium listed Complies with FCC part 15, class A 5 year warranty on all electronics and housing Dimensions: 13"L x 9.5"W x 2.2"H Spec Sheet

Read more less

3 Lumen Settings: 15,000LM(100W)/18,000LM(120W)/24,000LM(160W) 2 Kelvin Settings: 4000K/5000K Operating temperature (ambient): -40°C to 55°C (-40°F to 131°F) Universal 120-277V AC voltage (50-60Hz) is standard 347-480V achieved with step-down transformer 0-10VDC dimming drivers are standard Emergency driver option availableInput transient surge protection = 6kV Polycarbonate prismatic lens Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures Plug-In Microwave & PIR Sensor Ready - Sold Sparately Remote control required to change factory sensor settings  Long-life LEDs provide 135,000 hours of operation with at least 70% of initial lumen output (L70), and 41,000 hours with at least 90% of initial lumen output (L90) Chain-mount kits (includes v-hooks , 1-meter long chain) are standard Optional surface mounting kit provides attachment to solid surfaces Optional pendant mounting kit provides pendant attachment to 1/2” rigid conduit Optional cable mount kit provides luminaire suspension cULus listed for damp locations DLC premium listed Complies with FCC part 15, class A 5 year warranty on all electronics and housing Dimensions: 17"L x 25"W x 2.4"H Spec Sheet

Read more less

3 Lumen Settings: 24,000LM(150W)/30,000LM(200W)/36,000LM(240W) 2 Kelvin Settings: 4000K/5000K Operating temperature (ambient): -40°C to 55°C (-40°F to 131°F) Universal 120-277V AC voltage (50-60Hz) is standard 347-480V achieved with step-down transformer 0-10VDC dimming drivers are standard Emergency driver option availableInput transient surge protection = 6kV Polycarbonate prismatic lens Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures Plug-In Microwave & PIR Sensor Ready - Sold Sparately Remote control required to change factory sensor settings  Long-life LEDs provide 135,000 hours of operation with at least 70% of initial lumen output (L70), and 41,000 hours with at least 90% of initial lumen output (L90) Chain-mount kits (includes v-hooks , 1-meter long chain) are standard Optional surface mounting kit provides attachment to solid surfaces Optional pendant mounting kit provides pendant attachment to 1/2” rigid conduit Optional cable mount kit provides luminaire suspension cULus listed for damp locations DLC premium listed Complies with FCC part 15, class A 5 year warranty on all electronics and housing Dimensions: 19.7"L x 10.25"W x 2.6"H Spec Sheet

Read more less

3 Lumen Settings: 36,000LM(230W)/48,000LM(310W)/60,000LM(400W) 2 Kelvin Settings: 4000K/5000K Operating temperature (ambient): -40°C to 55°C (-40°F to 131°F) Universal 120-277V AC voltage (50-60Hz) is standard 347-480V achieved with step-down transformer 0-10VDC dimming drivers are standard Emergency driver option availableInput transient surge protection = 6kV Polycarbonate prismatic lens Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures Plug-In Microwave & PIR Sensor Ready - Sold Sparately Remote control required to change factory sensor settings  Long-life LEDs provide 135,000 hours of operation with at least 70% of initial lumen output (L70), and 41,000 hours with at least 90% of initial lumen output (L90) Chain-mount kits (includes v-hooks , 1-meter long chain) are standard Optional surface mounting kit provides attachment to solid surfaces Optional pendant mounting kit provides pendant attachment to 1/2” rigid conduit Optional cable mount kit provides luminaire suspension cULus listed for damp locations DLC premium listed Complies with FCC part 15, class A 5 year warranty on all electronics and housing Dimensions: 30.7"L x 11"W x 2.6"H Spec Sheet

Read more less

3 Lumen Settings: 12,000LM(75W)/15,000LM(100W)/18,000LM(125W) 2 Kelvin Settings: 4000K/5000K L70 Life Hours: 134,000 Universal 120-277VAC  0-10VDC Dimming Drivers Plug-In Microwave & PIR Sensor Ready - Sold Seperately  Emergency driver option available (Coming Soon) Painted steel housing (stamped) and polycarbonate lenses are standard Chain-mount kit (includes v-hooks and 1-meter-long chain) are standard Options include wire-guard kits, pendant mount kits, cable mount kits, and surface mount  kits cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F) DLC 5.1 Premium Listed Input transient surge protection = 6kV Complies with FCC Part 15, class A 5-Year Warranty Dimensions: 16.5"L x 10.25"W x 1.8"H Spec Sheet

Read more less

3 Lumen Settings: 15,000LM(100W)/18,000LM(120W)/24,000LM(160W) 2 Kelvin Settings: 4000K/5000K L70 Life Hours: 134,000 Universal 120-277VAC  0-10VDC Dimming Drivers Plug-In Microwave & PIR Sensor Ready - Sold Seperately  Emergency driver option available (Coming Soon) Painted steel housing (stamped) and polycarbonate lenses are standard Chain-mount kit (includes v-hooks and 1-meter-long chain) are standard Options include wire-guard kits, pendant mount kits, cable mount kits, and surface mount  kits cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F) DLC 5.1 Premium Listed Input transient surge protection = 6kV Complies with FCC Part 15, class A 5-Year Warranty Dimensions: 23"L x 10.25"W x 1.8"H

Read more less

3 Lumen Settings: 24,000LM(150W)/30,000LM(200W)/36,000LM(240W) 2 Kelvin Settings: 4000K/5000K L70 Life Hours: 134,000 Universal 120-277VAC  0-10VDC Dimming Drivers Plug-In Microwave & PIR Sensor Ready - Sold Seperately  Emergency driver option available (Coming Soon) Painted steel housing (stamped) and polycarbonate lenses are standard Chain-mount kit (includes v-hooks and 1-meter-long chain) are standard Options include wire-guard kits, pendant mount kits, cable mount kits, and surface mount  kits cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F) DLC 5.1 Premium Listed Input transient surge protection = 6kV Complies with FCC Part 15, class A 5-Year Warranty Dimensions: 31"L x 10.25"W x 1.8"H

Read more less

3 Lumen Settings: 36,000LM(240W)/48,000LM(320W)/60,000LM(415W) 2 Kelvin Settings: 4000K/5000K L70 Life Hours: 134,000 Universal 120-277VAC  0-10VDC Dimming Drivers Plug-In Microwave & PIR Sensor Ready - Sold Seperately  Emergency driver option available  Painted steel housing (stamped) and polycarbonate lenses are standard Chain-mount kit (includes v-hooks and 1-meter-long chain) are standard Options include wire-guard kits, pendant mount kits, cable mount kits, and surface mount  kits cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F) DLC 5.1 Premium Listed Input transient surge protection = 6kV Complies with FCC Part 15, class A 5-Year Warranty Dimensions: 44"L x 10.25"W x 1.8"H

Read more less

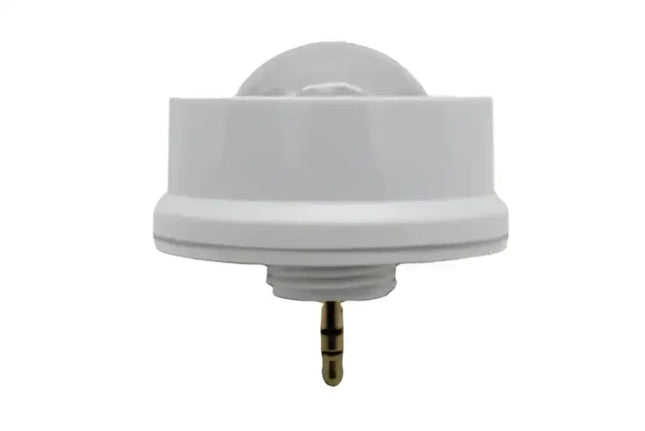

MUST PURCHASE REMOTE TO PROGRAM - SOLD SEPARATELY Max Mounting Height: 49FT Detection Diameter: 18FT Detection Area: 25%/50%/75%/100% Hold Time: 5s/30s/1min/3min/5min/10min/20min/30min Daylight Threshold: Disable/2lux/10lux/30lux/50lux/80lux/120lux Standby Dimming Level: 10%/20%/30%/50% Standby Period: 0s/10s/30s/1min/5min/10min/30min/60min/Infinite Can be used as a photocell  Wet Location Rated Default Settings: Detection Area - 100% Holdtime - 5s Daylight Threshold - Disabled Standby Period - 0s Standby Dimming Level - 10%

Read more less

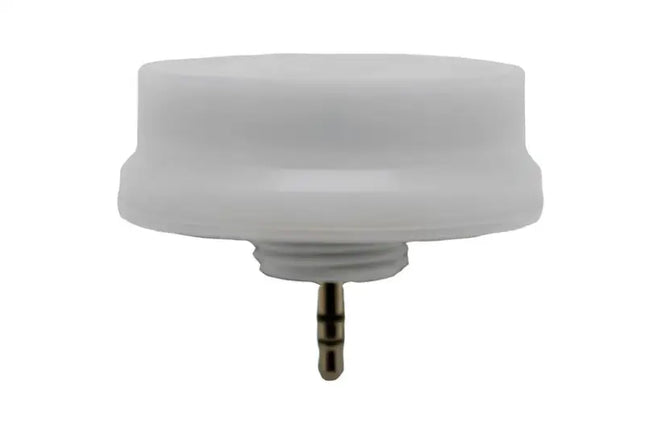

MUST PURCHASE REMOTE TO PROGRAM - SOLD SEPARATELY Max Mounting Height: 39FT Detection Diameter: 18FT Detection Area: 25%/50%/75%/100% Hold Time: 5s/30s/1min/3min/5min/10min/20min/30min Daylight Threshold: Disable/2lux/10lux/30lux/50lux/80lux/120lux Standby Dimming Level: 10%/20%/30%/50% Standby Period: 0s/10s/30s/1min/5min/10min/30min/60min/Infinite Can be used as a photocell  Default Settings: Detection Area - 100% Holdtime - 5s Daylight Threshold - Disabled Standby Period - 0s Standby Dimming Level - 10%

Read more less

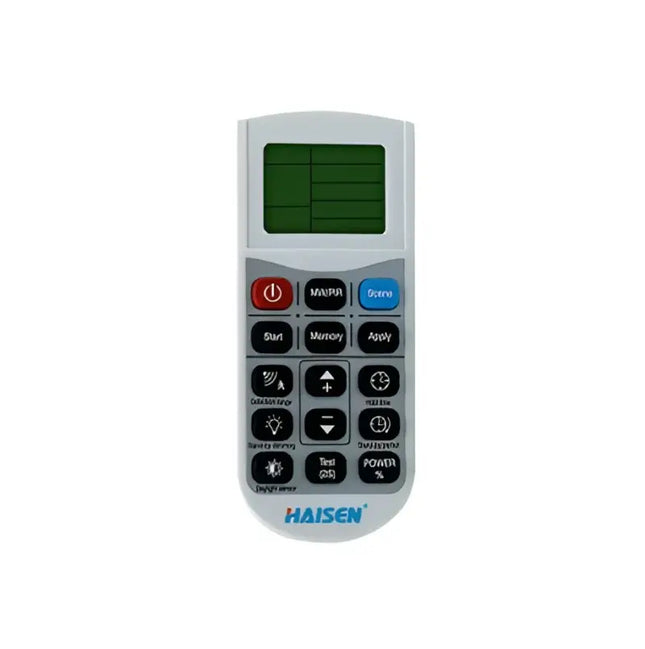

  REMOTE NEEDED TO PROGRAM PLUG-IN MICROWAVE & PIR OCCUPANCY SENSORS FOR SELECTABLE ROUND & LINEAR HIGH BAYS Only one remote needed to program several fixtures Memory function allows remote to be set once and repeatedly used to program multiple fixtures

Read more less

For use with full body style LED high bays Good for mounting in low-clearance areas We cannot guarantee compatibilty with products not sold on this website High bay sold separately

Read more less

For use with linear style LED high bays Good for mounting in low-clearance areas We cannot guarantee compatibilty with products not sold on this website High bay sold separately

Read more less

For use with adjustable style LED high bays Good for mounting in low-clearance areas We cannot guarantee compatibilty with products not sold on this website High bay sold separately

Read more less

For use with full body style LED high bays Good for suspending the high bay securely from a ceiling We cannot guarantee compatibilty with products not sold on this website High bay sold separately

Read more less

For use with adjustable lens LED high bays Good for suspending the high bay securely from a ceiling We cannot guarantee compatibilty with products not sold on this website High bay sold separately

Read more less

For use with linear LED high bays Good for suspending the high bay securely from a ceiling We cannot guarantee compatibilty with products not sold on this website High bay sold separately

Read more less
